220.127.116.11.1 Definition of the basin, basin extent and regional geological context
The Gippsland Basin covers an area around 46,000 km2. The basin widens and deepens to the east and about 70% of the basin occurs offshore beneath the present-day continental shelf (Holdgate and Gallagher, 2003). The basin is approximately 400 km long and 80 km wide, extending onshore from the Mornington Peninsula in the west to the edge of the continental shelf in the east. The boundaries of the basin are roughly defined by the Lake Wellington Fault System to the north, the Foster Fault system to the south, the Selwyn Fault to the west (near Western Port) and the Gippsland Rise to the east (Duddy, 2003) (see Figure 17). It is bounded to the north by Paleozoic basement rocks of the Eastern Highlands, to the west by uplifted Lower Cretaceous Strzelecki Group fault blocks and by the Bassian Rise in the south-west which separates it from the Bass Basin. The Gippsland Basin bioregion encompasses the part of the onshore geological Gippsland Basin, east of the drainage divide on the Narracan Block, approximately 14,636 km2.
The Gippsland Basin began to form in the Late Jurassic in response to rifting of the Australian plate at its southern margin (e.g. Norvick et al., 2001). Significant subsidence began in the Early Cretaceous and continued into the Cenozoic, leading to accumulation of up to about 12 km of Cretaceous and Cenozoic sediments in the main depocentres, located in the offshore portion of the basin. Deep extensional faults segment the basin into platforms and terraces with sedimentary thickness markedly increasing toward the offshore Central Deep (Rahmanian et al., 1990). Paleozoic rocks form the basement of the Gippsland Basin, mostly Ordovician to Early Devonian sandstone and shale sequence (turbidites), and are intruded by high level Middle Devonian granites (Webb et al., 2011).
Figure 17 Geology of the Gippsland Basin bioregion including faults and structural elements. Locations of cross-sections A1-A2 and B1-B2 are delineated
Data: Department of Environment and Primary Industries (Dataset 1)
18.104.22.168.2 Structure and sub-basins
The onshore Gippsland Basin is divided into numerous structural elements. These include the Latrobe Valley Depression, Baragwanath Anticline, Seaspray Depression, Alberton Depression, Moe Swamp sub-basin, Lakes Entrance Platform and the Lake Wellington Depression (Hocking, 1976b). These subdivisions have an important control for coal resource distribution and the hydrogeology of the basin, affecting the depositional and erosional history of the basin. They will be referred to extensively throughout the remainder of this section and Section 1.1.4. Offshore, the basin has three major structural elements: the principal basin depocentre of the Gippsland Basin – the Central Deep; flanked in turn by the Northern and Southern terraces (formerly known as the Strzelecki terraces) and the Northern and Southern platforms as shown in Figure 17. The deep water part of the offshore basin (where the water column is greater than 500 m) is poorly defined and will not be discussed further in this report as it is not directly relevant to the Gippsland Basin Bioregional Assessment.
Principal fault trends are dominantly west-north-west in the offshore part of the basin, with fold trends orthogonal at north-east to east-north-east directions (Power et al., 2001). Onshore fold trends tend to align north-north-east to east-west. Significant faulting (mainly reverse) at depth in the onshore part of the basin is commonly expressed in the Eocene to Miocene aged sediments by monoclinal folding and Pliocene topographic uplift (Holdgate and Gallagher, 2003).
The key regional geological structures in the basin are the east-west extensional faults, the Lake Wellington Fault System, Foster Fault System, Darriman Fault System, Rosedale Fault System and the Baragwanath Anticline (see Figure 17). Brief descriptions of these structures are below, with further context including their influence on basin development provided in Section 22.214.171.124.2. There are many more geological structures that are important at local scales within the basin. In the Latrobe Valley Depression the depth to coal and coal seam thickness is greatly influenced by structure, for example penecontemporaneous sediment deposition, erosion and uplift have caused thick coal development over the Loy Yang Dome at shallow depths. Most outcrops of basement rocks are bounded by major faults and commonly form prominent scarps for example, the Strzelecki Group Balook Block is bounded by a number of major faults, including the Budgeree, Balook, Carrajung and Yarram faults (Hocking, 1976b).
Not all these structures are relevant to this analysis, and only those most relevant are described herein. However, the reader is referred to the publications cited throughout for more detail, in particular Bernecker et al. (2003), Cupper et al. (2003), Duddy (2003), Hocking (1976a), Holdgate (2003), and Holdgate and Gallagher (2003).
Onshore structural elements
Lakes Entrance Platform: The Lakes Entrance Platform extends across the northern Gippsland Basin (see Figure 17). It is bounded to the north by outcropping Paleozoic basement and to the south by the Lake Wellington Fault System. Offshore, it merges with the Northern Platform. Rocks of the Strzelecki Group were mostly stripped from the Lakes Entrance Platform by erosion following uplift in the Early Cretaceous. It is unconformably covered by Cenozoic undifferentiated Latrobe Group sediments, by the Seaspray Group and by thin upper Pliocene to Quaternary sediments of the Sale Group.
Latrobe Valley Depression: The Latrobe Valley Depression lies between the Eastern Highlands (Paleozoic rocks) to the north and the Lower Cretaceous Balook Block to the south (Thomas and Baragwanath, 1949). To the west it is separated from the Moe Swamp sub-basin by the Yallourn Monocline. The Depression contains up to 700 m of Latrobe Group sediments (Abele, 1988).
Baragwanath Anticline: The Baragwanath Anticline is a complex, east-plunging, uplifted structural block with some faulted margins and a number of east-north-east trending subsidiary anticlines and synclines. It forms an anticlinal axis between the Gormandale Syncline extension and the Merrimans Creek Syncline and separates the Lake Wellington Depression to the north from the Seaspray Depression to the south. The core of the structure is the Lower Cretaceous Baragwanath Block which is a buried, down faulted, eastern extension of the outcropping Balook Block (Hocking, 1976b). The Baragwanath Anticline is of Cenozoic age and is the largest anticline structure within the onshore part of the basin. It is overlain by thin Latrobe Group sediments, deposited contemporaneously with uplift (Nahm, 2002).
Lake Wellington Depression: The Lake Wellington Depression (Hocking and Taylor, 1964) is bounded by the Lakes Entrance Platform to the north (along the Lake Wellington Fault System) and the Baragwanath Anticline and Rosedale Fault System to the south. It contains the upper part of the Latrobe Group, resting unconformably on the Strzelecki Group and is overlain by marine sediments of the Seaspray Group and the younger non-marine Boisdale Formation. Total thickness of Cenozoic sediments is about 1200 m. The western boundary of the Lake Wellington Depression coincides with the limit of marine sedimentation within the Gippsland Basin. In the east, the Lake Wellington Depression merges with the Latrobe Valley Depression (Abele, 1988).
Seaspray Depression: The Seaspray Depression is bounded to the north by the Baragwanath Anticline and the Rosedale Fault System, to the west by the Balook Block and to the south by the Darriman Fault System (Hocking, 1976b). The Seaspray Depression merges offshore with the Central Deep. Cenozoic sediments have a maximum thickness about 1700 m in the Seaspray Depression, in the vicinity of the town of Seaspray (Abele, 1988).
Alberton Depression: The Alberton Depression is bounded to the north by the Yarram Monocline and the Darriman Fault System and to the south by the Foster Fault System. The Alberton Depression merges offshore with the Southern Terrace. Onshore, Cenozoic sediments may exceed 500 m thickness in the western part of the depression (Abele, 1988).
Moe Swamp sub-basin: The Moe Swamp sub-basin is at the north-western extremity of the Gippsland Basin between the Warragul and Haunted Hill Blocks (Hocking, 1976b). It is bounded by Paleozoic bedrock in the north, the Darnum Fault to the west, the Yarragon Monocline to the south and the Yallourn Monocline to the east (Brumley and Holdgate, 1983). The Cenozoic sedimentary sequence is up to 500 m thick in the Moe Swamp sub-basin (Nahm, 2002).
Tarwin sub-basin: The Tarwin sub-basin is located west of the Balook Block. It is bounded by uplifted Strzelecki Group rocks and to the north by the Narracan Block. Around 150 m of Cenozoic sediments occur in the Tarwin sub-basin.
Major regional faults
Lake Wellington Fault System and Foster Fault System: These fault systems began developing during the first phase of rifting in the Late Jurassic to Early Cretaceous. The Lake Wellington Fault System (Stainforth, 1984) is an east trending normal (extensional) fault system, mapped onshore from near Yallourn to Lakes Entrance, where it continues offshore. The Foster Fault System (Milliken, 1968) is also an east trending normal (extensional) fault system, mapped onshore near Yarram and extending offshore.
Compressional movement along these faults occurred during the Eocene (Duddy, 2003), leading to uplift of the Lakes Entrance Platform and the Southern Platform.
Darriman Fault System and Rosedale Fault System: A second phase of rifting from the Late Cretaceous to Eocene formed the Darriman and Rosedale Fault Systems. This rifting phase accommodated deposition of the Latrobe Group. The Darriman and Rosedale Fault Systems are both normal (extensional) faults. The Darriman Fault System (Maung, 1989) is generally east trending and is mapped from the southern margin of the Balook Block, across the northern extent of the Alberton Depression and extending offshore. The Rosedale Fault System (Hocking, 1976b) is east trending, mapped from the Baragwanath Anticline and extends offshore to the east.
Figure 18 and Figure 19 show two schematic geological cross-sections of the Gippsland Basin. The locations of the cross-sections are shown in Figure 17

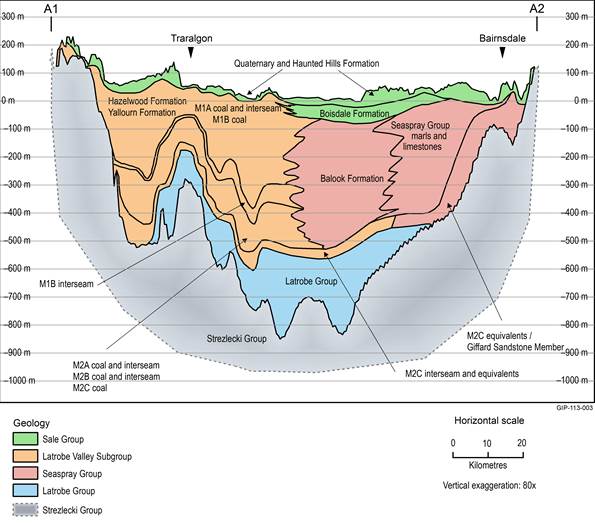

Figure 18 Schematic geological cross-section (A1-A2) of the Gippsland Basin showing the major geological unit groupings
Source: Nicol (2010)

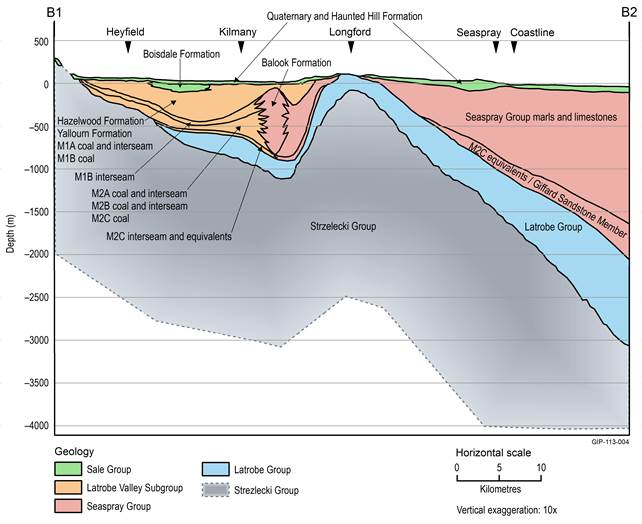

Figure 19 Schematic geological cross-section (B1-B2) of the Gippsland Basin showing the major geological unit groupings
Source: Nicol (2010)
