1.1.5.1 Surface water hydrology and water quality


The Namoi river basin drains an area of 42,000 km2 flowing from east to west from its headwaters in the Great Dividing Range (CSIRO, 2007; MDBA, 2012). Further details on the Namoi river basin and the Namoi subregion, including what proportion of the river basin is inside the subregion, are given in Section 1.1.2 Geography. The main surface water resource of the Namoi subregion is the Namoi River. Its approximate mean flow upstream of Walgett (station ID 419091) between 1999 and 2009 was 269.4 GL/year. The major tributaries of the river upstream of Narrabri are Peel, Manilla, McDonalds and Mooki rivers and Coxs Creek (Figure 36). The tributaries downstream of Narrabri are Pian (anabranch), Gunidgera (anabranch), and Baradine and Bohena creeks (Green et al., 2011). There are numerous other minor tributaries. See Figure 37 for a detailed stream network.

The lowland floodplain downstream of Narrabri supports small lagoons, wetlands and anabranches and is important for a range of aquatic habitats (MDBA, 2012; SKM, 2011). Detailed information about water resources including water supply, rainfall, climate and other features of the area is given in Green et al. (2011) and CSIRO (2007).

Figure 36

Figure 36 Tributaries of the Namoi River, major dams and town centres

1.1.5.1.1 Catchments and subcatchments

Peel catchment (4669 km2)

The Peel catchment is the main catchment in the eastern part of the basin. The Peel River contributes an average annual flow of 280 GL to the Namoi River, flowing from the western side of the Great Dividing Range to its confluence with the Namoi River downstream of Keepit Dam. A number of tributaries contribute to the Peel River including Duncans, Dungowan, Goonoo Goonoo, Moore, Timbumburi, Tangarratta and Attunga creeks, and Cockburn River. Some of the tributaries (e.g. the Cockburn River, Goonoo Goonoo Creek and Dungowan Creek) are perennial for most years. The Peel River is regulated by Chaffey Dam (NSW Office of Water, 2010). Although Peel River contributes to the Namoi subregion flow, the entire Peel catchment lies outside of the subregion.

Mooki catchment (3870 km2)

The Mooki catchment is located in the south‑east of the Namoi river basin. Its major tributaries are the Phillips, Warrah and Quirindi creeks. Lake Goran, the largest natural water body in the Namoi subregion, occupies 82 km2 when full and is located in the Mooki River catchment (Zhang et al., 1997; Green et al., 2011). Water sharing plans to regulate water use in the Mooki River and its tributaries have been developed (NSW Office of Water, 2012).

Coxs catchment (4040 km2 at Boggabri)

Coxs catchment, located in the southern part of the Namoi subregion, covers about 9.5% of the area of the Namoi river basin. Its main tributaries include Washpen, Dunnadie, Kerringle, Quia and Cobblar creeks. The catchment contains good agricultural soils and is a highly productive area for agriculture (NCMA, 2011).

Manilla catchment (1795 km2 at Upper Manilla)

This catchment is located in the north-east of the Namoi river basin and is outside of the Namoi subregion. The tributaries joining the Manilla River are Ironbark, Barraba, Connors and Borah creeks, and the Macdonald River. The Split Rock Dam is on the Manilla River.

Baradine catchment (4883 km2)

This catchment lies in the western part of the Namoi subregion. The Baradine Creek flows in a north‑westerly direction originating from hills west of the Newell Highway, to its confluence with the Namoi River east of Walgett (Figure 36). Baradine Creek is an ephemeral creek with an average annual flow at Kienbri No. 2 gauging station (with a catchment area of 1000 km2) of about 14 GL (Green et al., 2011).

Bohena Creek catchment (830 km2)

The Bohena catchment is located south of Narrabri and is drained by Bohena, Cowallah and Bibblewindi Creeks. Less than 160 km2 of this catchment, mainly in the northern part, is cleared and is used for sheep and cattle grazing. The rest of the catchment is used for biodiversity conservation (NCMA, 2013).

1.1.5.1.2 Surface drainage networks and associated features

The Namoi river basin is well drained by the Namoi River and its tributaries for most areas east of Pilliga (Figure 37). The surface drainage network extends through different landscape units ranging from uplands with steep terrain to flat low lying alluvial plains (Lampert and Short, 2004). The area surrounding Lake Goran is internally drained and has a low density of natural surface water drainage. About two-thirds of the Namoi river basin is relatively flat. The low lying alluvial flood plains of the Namoi subregion are less densely drained than the areas in the east of the basin, possibly due to the flat terrain.

Irrigated agriculture covers approximately 5.3% of the Namoi subregion (see Table 3), the majority of which is located downstream of Narrabri (CSIRO, 2007). Therefore the surface water drainage network resulting from irrigation channels is not as extensive as the natural drainage network.

Figure 37

Figure 37 Natural surface water drainage network

1.1.5.1.3 Surface water infrastructure

There is much surface water infrastructure such as major and minor public water storage dams, farm dams, culverts, causeways, fords, streamflow gauging weirs, bed control structures, floodgates and bridges in the Namoi river basin including open-channel conveyance systems for irrigation. For a fish passage barrier study, a total of 496 instream structures were assessed by the NSW DPI (2006b). The three major dams in the Namoi river basin lie outside of the Namoi subregion. They are:

  1. Keepit Dam (426 GL, on the Namoi River)
  2. Chaffey Dam (62 GL, on the Peel River)
  3. Split Rock Dam (397 GL, on the Manilla River).

These dams supply water to irrigators, the main water users in the basin, although Keepit Dam was originally built for flood mitigation. A smaller dam (Dungowan Dam, 6 GL, on Dungowan Creek in the Peel River system, not shown) supplies water to the city of Tamworth – the largest urban centre in the basin. Additionally, there are farm dams with an estimated capacity of 160 GL spread across the Namoi river basin (Basin Plan – item 11 Schedule 3).

Namoi River and its tributaries have more than 75 weirs on them owned by the State Water and different shire and regional councils (NSW DPI, 2006a, 2006b). Some of the main weirs are the Mollee, Gunidgera, Weeta, Namoi (downstream of Keepit Dam) and Walgett weirs. Most of these weirs are used for irrigation diversions. See NSW DPI (2006b) for further detail.

1.1.5.1.4 Streamflow volume and river flow metrics

There are about 116 streamflow gauging stations (many of which have been discontinued) of which sixty-eight have continuous flow monitoring gauges (NSW Office of Water, 2010). The mean daily flows at selected gauges, summarised in Table 10, show that streamflow record periods vary from nearly 30 years to more than 100 years. The Namoi River at Gunnedah (catchment area of 17,100 km2) has the highest mean daily flow. The effect of weirs and other diversions on the Namoi River below Gunnedah is evident from the lower mean daily flow further downstream (e.g. Namoi River at Bugilbone).

The annual flow hydrograph of the Namoi River at Boggabri (Figure 38) and the plot of cumulative difference from the long-term annual mean of 773 GL (Figure 39) show mostly lower than long-term average flows during 1937 to 1948 and 2001 to 2009 (see Burrell and Ribbons (2006) for further interpretation of cumulative differences from the mean plots). From 1937 to 2012, 71% of yearly flow values have been less than long-term mean with 50% of the flow less than half the long-term mean. During this period, 13% of the flows are twice the long-term mean. This suggests annual flows in the Namoi River at Boggabri are characterised by mostly below average flow with periodic occurrence of very large flows.

Similar plots for the Namoi River at Gunnedah (upstream of Narrabri) show mostly lower flows than the long-term annual mean of 669 GL occurring during 1911 to 1949 and 1979 to 2011 (Figure 40 and Figure 41). For the past 33 years, flows have been above the long-term annual mean in only six years. Also, the river flow has continuously been below the long-term mean since 2001 (except in 2010) suggesting a drought of more than 10 years. These impacts on flow could be further affected by the Namoi Catchment Management Authority’s (NCMA) ten-year Catchment Action Plan (2010–­2020), which sets biodiversity targets aiming to achieve at least 30% and 70% woody vegetation cover in cleared and intact catchments respectively (NCMA, 2011).

Overall, Figure 38 to Figure 41 show the impacts of combined climate and land use changes and catchment development since the 1950s on Namoi River flows. A more detailed assessment is needed to ascertain the relative effect of each of these factors.

Table 10 Mean daily flow for selected gauging stations in the Namoi river basin


Gauging stations

Catchment Area (km2)

Mean daily flow (ML)

Period of record

Namoi River downstream of Keepit Dam

5,700

972

1924–2009

Namoi River at Gunnedah

17,100

1922

1891–2009

Narrabri Creek at Narrabri

25,120

1512

1891–2009

Namoi River downstream of Gunidgera Weir

28,500

1364

1976–2009

Namoi River at Bugilbone

31,100

1569

1951–2009

Manilla River at Upper Manilla

1,795

165

1941–2009

Macdonald River at Retreat

1,760

435

1965–2009

Peel River at Carroll Gap

4,670

766

1923–2009

Mooki River at Breeza

3,630

296

1957–2009

Coxs Creek at Boggabri

4,040

231

1965–2009

Baradine Creek at Kienbri 2

1,000

38

1981–2009

Pian Creek at Waminda

241

1972–2009

Gunidgera Creek downstream of regulator

323

1975–2009

Source: Green et al. (2011)

Figure 38

Figure 38 Annual flows in the Namoi River at Boggabri (419012)

Orange line shows the long-term mean (773 GL).

Figure 39

Figure 39 Cumulative differences from the long-term annual mean for the Namoi River at Boggabri

Source data: NSW Water Information (waterinfo.nsw.gov.au/)

Figure 40

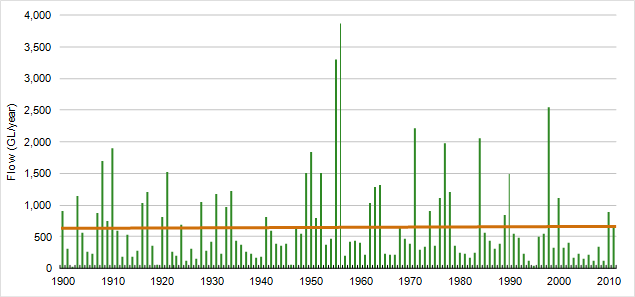

Figure 40 Annual flows in the Namoi River at Gunnedah (419001)

Orange line shows the long-term mean (669 GL).

Source data: Pinneena v 9.3

Figure 41

Figure 41 Cumulative difference from the long-term annual mean for the Namoi River at Gunnedah

1.1.5.1.5 Surface water storage data

Figure 42 shows the variations in annual volume of stored in the three major dams. The dam water storages generally reflect the annual rainfall pattern in the area (see Figure 45).

(a)

For a description of this image please contact bioregionalassessments@bom.gov.au

(b)

Figure 42

Figure 42 Water storages (a) Chaffey Dam and (b) Split Rock and Keepit dams in the Namoi river basin

Source data: Pinneena v.9 and NSW Waterinfo (2013)

1.1.5.1.6 Water quality

Basic water quality indicators such as electrical conductivity (EC), turbidity, total suspended solids, and nutrients were monitored on a monthly basis for the five-year Namoi Water Quality Project (NWQP) study, starting in July 2002 (Mawhinney, 2011). Residues of herbicides and insecticides were also measured. The study found that majority of sites had median electrical conductivity (EC) results that did not meet the ANZ Environmental and Conservation Council (ANZECC) and Agriculture and Resource Management Council of Australian and New Zealand (ARMCANZ) default trigger values for the protection of aquatic ecosystems of south-eastern Australia. Median total phosphorus and total nitrogen in excess of the ANZECC and ARMCANZ default trigger values in conjunction with low flows were also experienced. The study reports that despite not meeting the default trigger values of EC the water was still suitable for irrigation and although the heightened nutrients provided favourable conditions for the growth of toxic blue-green algae they did not eventuate in high volumes due to a lack of other causation factors (Mawhinney, 2011). The project findings are summarised here:

  1. Electrical conductivity:
    1. Mooki River at Breeza and Ruvigne and upstream reaches of Coxs Creek showed the highest median electrical conductivity, ranging from around 1000 to 1300 µS/cm. For all other locations on the Namoi River downstream of Boggabri, including the Pian anabranch, median EC values were below 650 µS/cm which is a low salinity level for irrigation water (Mawhinney, 2011).
  2. Total phosphorus:
    1. All sites in the Namoi river basin were found to have high enough total phosphorus concentration present to encourage algae growth. Although increased total phosphorus can encourage blooms of toxic blue-green algae, other factors such as water temperature, turbidity, and stagnant water pooling are also important factors in sustaining algal growth. A much higher concentration of total phosphorus (>0.2 mg/L) was found in the Mooki River at Ruvigne and in Coxs Creek at Boggabri. The alluvial soils in these two catchments are naturally high in phosphorus. These soils, when eroded, get into the river system and transport the associated phosphorus downstream (Mawhinney, 2011).
  3. Total nitrogen:
    1. High concentrations of median total nitrogen (>1.5 mg/L) were found in the Mooki River at Ruvigne, in Coxs Creek at Boggabri and in Pian Creek at Waminda between July 2002 and June 2007 which were higher than in the 1990–2000 period for Mooki River and Coxs Creek. The 1990–2000 data for Pian Creek at Waminda are unavailable for comparison. The other sites had nitrogen levels similar to or lower than 1990 to 2000 historical data.
  4. Turbidity and total suspended solids:
    1. The majority of suspended sediments in the Namoi River are derived from the Mooki River and Coxs Creek catchments and caused by gully and channel bank erosion (Caitcheon et al., 1999). These two catchments are the largest sources of suspended solids to the Namoi River.
    2. Generally, turbidity increases downstream in the Namoi River (Olley and Scott, 2002). The turbidity levels found during the NWQP at a majority of sites in the Namoi River compare well with levels from the previous ten years, indicating no significant change in turbidity over the years.
  5. Herbicides:
    1. Residues of the herbicide Atrazine, used to control annual grasses and broad leaf weeds in summer crops, are still detected at sites in the Mooki and Coxs catchments. The detection rate and concentrations have fluctuated over time with low values observed during dry years.
  6. Insecticides:
    1. There has been a rapid decline in the detection of insecticide (endosulfan) residues since 1998–99. See Mawhinney (2011) for further details.

1.1.5.1.7 Flooding history

Figure 43 shows the flooding extent of the largest flood event in the Namoi river basin in 1956, attributed to two wetter years due to the La Niña events of 1955 and 1956. These were the two strongest recorded La Niña events in Australia (Bureau of Meteorology, 2013). The annual total rainfalls for 1955 and 1956 were well above the annual long-term mean at several sites in the basin. For example, annual rainfalls in Narrabri for the two years were 872 and 850 mm respectively (cf. the long-term average of 649 mm/year). Although these are not among the highest rainfalls for the basin, residual effects of a wetter year in 1955, coupled with the above-average rainfall in 1956, most likely created the conditions that led to the 1956 flood (O’Gorman, 2010).

The Namoi river basin also experienced much wetter years in 1963, 1964, 1977, 1978, 1988, 1991, 1999, 2004 and 2010, however the flooding extents in these years were less than that in 1956. This could be due to the flood mitigation effects of the Keepit Dam (completed 1960), the Split Rock Dam (completed 1987) and the Chaffey Dam (completed 1979). The increased numbers of farm dams capturing runoff and other diversions due to growth in economic development in the basin since 1956 may also have moderating effects on floods in the basin (see e.g. Green et al., 2011; NCMA, 2011).

Figure 43

Figure 43 Extent of flooding in the Namoi river basin in 1956

Source data: data for Figure 43 were digitised by Laurie, Montgomerie and Pettit Pty Ltd on contract to the NSW Water Resources Commission from the Namoi Floodplain Atlas produced in 1979 using aerial photographs and from on-ground knowledge and Commission records.
