1.3.1.4 Assessing water dependence


1.3.1.4.1 Assessment principles

Once assets were compiled into the asset database and checked for inclusion in the PAE, they were assessed for water dependence. Although most nominated assets are, by definition of their database sources, 'water dependent' (e.g. groundwater bores, rivers, lakes and wetlands), there are a number of types of assets that are less clearly 'water dependent' (e.g. a national park with a varied landscape, the habitat of a non-aquatic species and historical places). Because of the diversity of asset types, the spectrum of degrees to which assets might be water dependent, and the need for all assessment decisions to be transparent and recorded, a highly structured, formal approach was developed for assessment of water dependency.

Six principles formed the foundation of the approach to assessment of water dependence of assets in the Arckaringa PAE:

  1. Efficiency. The methods were suitable for effective application for large numbers of assets.
  2. Transparency. All decisions in assessments were tracked, including their rationale, as well as any data sources and dates of assessments.
  3. Rigour. Decision making was based on sound ecological, economic and sociocultural principles and clear logic, and was able to withstand close peer and expert scrutiny.
  4. Multiple lines of evidence. Wherever possible, assessment decisions were based on as many sources of information about water dependence as possible. Three broad groups of evidence were used: (i) asset naming conventions, (ii) documents describing asset management and (iii) GIS and remote sensing databases containing layers that directly or indirectly quantify surface water and groundwater availability.
  5. Precaution. Where part of an asset is water dependent, the entire asset was assessed as water dependent. Where there is inconclusive evidence, assessment decisions consistently erred on side of assuming potential water dependence (i.e. if one data source indicates water dependence, then the overall decision across the multiple lines of evidence was water dependence). On this basis, the maximum number of assets was retained within the database for subsequent analysis of potential development impacts.
  6. Separate tracking of assessment for dependence on groundwater and surface water. Later stages of the BA impact analysis are likely to demonstrate separate causal pathways for potential impact of coal resource development via surface water and groundwater systems. If that proves to be the case, then potential for impact on an asset via the surface water or groundwater pathway will only be true if the asset depends on the corresponding above or below-ground water resource (Figure 4).

Figure 4

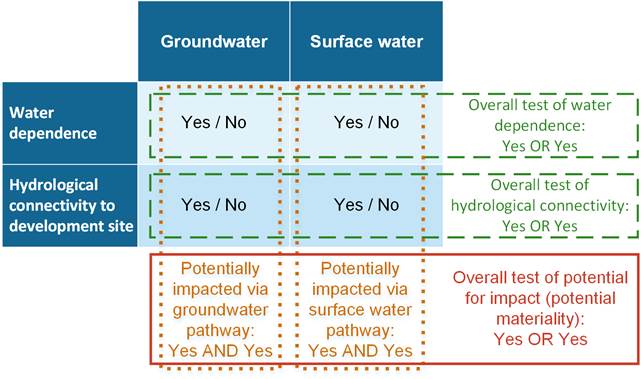

Figure 4 Logic for separate assessment and tracking of dependence on groundwater and surface water

This report focuses exclusively on assessment of water dependence i.e. the upper part of this logic. Future bioregional assessments for the Arckaringa subregion will assess hydrological connectivity and response, and thus the potential for impact on assets.

1.3.1.4.2 Assessment criteria using asset naming conventions

For some asset sources, the only direct information available for assessing water dependence of each asset is its name. The Australian Hydrological Geospatial Fabric (AHGF), Great Artesian Basin Groundwater Recharge Beds database and National Groundwater Information System (NGIS) are databases in which little asset data other than name and geographic coordinates are available. The Queensland, South Australia and Northern Territory groundwater licensing from the water management system databases are also restricted in terms of information other than asset name and type.

Two simple naming criteria were used to assess water dependence for assets of these types:

  • if asset name includes ‘spring’, ‘soakage’, ‘bore’ or ‘groundwater’, then the asset is groundwater dependent
  • if asset name includes ‘river’, ‘stream’, ‘floodplain’, ‘waterhole’, ‘billabong’, ‘lake’, ‘wetland’, ‘marsh’ or ‘surface water’, then the asset is surface water dependent.

Although initially developed for specific, information-poor data sources, these rules were subsequently applied to all assets in the asset list, regardless of data source.

1.3.1.4.3 Assessment criteria using documents describing asset management

Most assets sourced from the CAPAD, DIWA, and EPBC Act list of threatened ecological communities are subject to legislatively required management plans that include some degree of ecosystem description. For these assets, management plans and/or asset descriptions were obtained from federal, state and territory agencies. The management plans and their constituent ecosystem descriptions were then subjected to text analysis, using the following simple criteria to assess water dependence:

  • if ecosystem description includes ‘spring’, then asset is groundwater dependent
  • if ecosystem description includes any ecosystem type, community type, habitat type or dominant species and has been identified in any published literature as accessing groundwater (e.g. river redgum, coolibah (Eucalyptus coolabah), fish species), then asset is groundwater dependent
  • if ecosystem description includes ‘riverine vegetation’, ‘floodplain’, ‘waterhole’, ‘billabong’, ‘lake’, ‘wetland’ or ‘marsh’, then asset is surface water dependent
  • if ecosystem description includes any ecosystem type, community type, habitat type or dominant species known to access surface water (e.g. river redgum, coolibah (Eucalyptus coolabah), lignum, most waterbird species, fish), then asset is surface water dependent.

According to these criteria, examination of documents about one asset may yield determination for both groundwater dependence and surface water dependence in one ecosystem type or in different ecosystem types in different parts of the asset.

The water dependency of threatened species’ habitats, including threatened species listed under the EPBC Act and under Queensland’s Nature Conservation Act 1992 (Nature Conservation Act), was assessed by a review of the habitat requirements for each species. It is important to emphasise that BAs consider the potential impact to the habitat of species, not to the population of the species per se. In most cases, profiles from the Species Profile and Threats Database (SPRAT) (Bioregional Assessment Programme, Dataset 21) and the Queensland Government’s WetlandInfo website (DEHP, 2015) were examined.

Any information suggesting that water dependence was ‘certain’, ‘likely’ or ‘possible’ was interpreted as ‘water dependent’ for the purposes of the asset register.

1.3.1.4.4 Assessment criteria using GIS and remote sensing databases

Criteria based upon asset naming and upon available, published asset descriptions and management plans proved to be inadequate for satisfactory assessment of water dependence in a large proportion of assets. Other sources of information were sought to expand the range of data available for assessment of asset water dependence.

Five mapped GIS and remote sensing data layers were identified as providing additional information relevant to assessing dependence on surface water or groundwater. GIS analyses were used to spatially intersect each asset with each of the five data layers. If any part of an asset was found to overlap with any one of these layers, then that observation was used as evidence for water dependence, according to the precautionary principle previously described in Section 1.3. 1.4.1.

The five data layers were:

  1. Groundwater-dependent ecosystems reliant on subsurface presence of groundwater, derived from the National atlas of groundwater dependent ecosystems ; Bureau of Meteorology, 2012). Subsurface presence of groundwater is defined as groundwater that contributes to the soil water and near-surface aquifers accessible to plant roots without generating a flow of water at the soil surface. Only those GDEs derived from previous field work or possessing a high or moderate potential for groundwater dependency were used in the intersection. Positive intersection of an asset with this layer indicates potential dependency on groundwater. A map of this data layer across the Arckaringa PAE is shown in Figure 5.
  2. Groundwater-dependent ecosystems reliant on surface expression of groundwater, derived from the GDE Atlas (Bureau of Meteorology, 2012). Surface expression of groundwater is defined as groundwater that flows at the soil surface in the form of a spring or seep, including those springs that lie under surface water bodies such as streams, waterholes, lakes or swamps, for which the primary source of water may be from surface flows. Only those GDEs derived from previous field work or possessing a high or moderate potential for groundwater dependency were used in the intersection. Positive intersection of an asset with this layer indicates potential dependency on groundwater and/or surface water. A map of this data layer across the Arckaringa PAE is shown in Figure 6.
  3. A combined multi-state and territory map of wetlands defined according to the SA Wetlands Groundwater Dependent Ecosystem Classification and Northern Territory - Lake Eyre Basin - Wetlands Mapping. Positive intersection of an asset with this layer indicates potential dependency on subsurface or surface expression of groundwater. A map of this data layer for the Arckaringa PAE is shown in Figure 7.
  4. Mean annual evapotranspiration in excess of incident rainfall across the Arckaringa PAE (Reside et al., 2013). This layer is calculated as the difference between actual evapotranspiration assessed through remote sensing techniques during 1992 to 2011 and a predicted model of evapotranspiration if water were sourced only from incident rainfall. A positive difference means that long-term observation of the amount of water released into the atmosphere by plant evapotranspiration exceeds the inputs of water from rainfall, and the vegetation is accessing additional water from groundwater pools or contributions to soil water. These contributions to soil water result from surface water flowing from elsewhere in the catchment; however, the data were not able to be interpreted to indicate whether the additional water is from a groundwater pool or surface water flow. Thus, intersection of an asset with high excess evapotranspiration values (>100 mm per annum) in this layer indicates potential dependency on groundwater and/or surface water. A map of this data layer across the Arckaringa PAE is shown in Figure 8.
  5. Percentage duration of flood inundation during 1987 to 2015, from the Water Observations from Space database (Bioregional Assessment Programme, Dataset 23). Positive intersection of an asset with higher percentage inundation classes (>1 % of time) in this layer indicates potential dependency on surface water. A map of this data layer across the Arckaringa PAE is shown in Figure 9.

Application of this approach is demonstrated for a single asset in the Arckaringa PAE, Witjira National Park (Figure 10 and Figure 11). Witjira National Park sits to the west of the Simpson Desert, immediately south of the border between South Australia and the Northern Territory (see Figure 9), and includes the Dalhousie Springs complex. All five GIS and remote sensing layers provide clear evidence for dependence on groundwater and/or surface water in and around watercourses in the northern and central portions of the park, and in and around the swales, claypans and salt lakes in the southern portion of the park. Therefore, this asset was assessed to be water dependent and is included in the register of water-dependent assets. However, it is important to note that in the eastern and south-west portions of the park, each of the five layers provides evidence for different patterns of potential water dependence. Thus the five layers provide independent and complementary lines of evidence for the assessment of asset dependence on water.

Figure 5

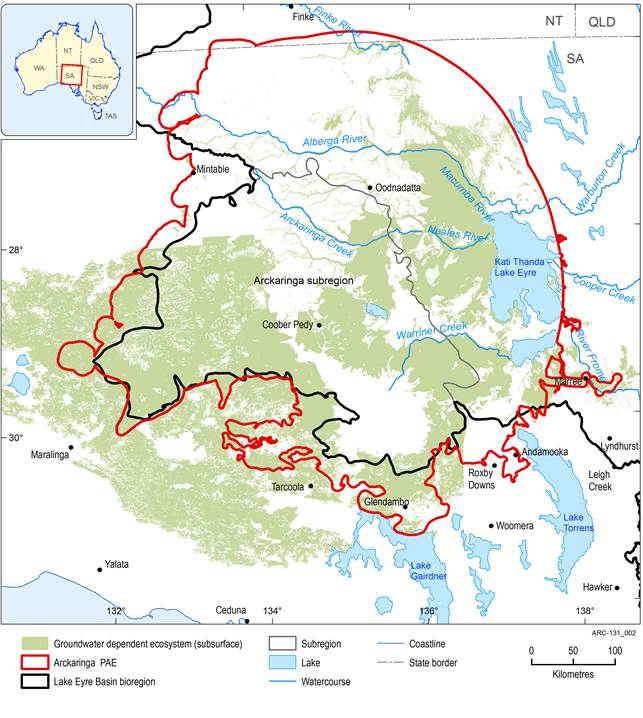

Figure 5 Groundwater-dependent ecosystems reliant on subsurface presence of groundwater in the Arckaringa preliminary assessment extent (PAE)

Data: Bureau of Meteorology (Dataset 7)

Figure 6

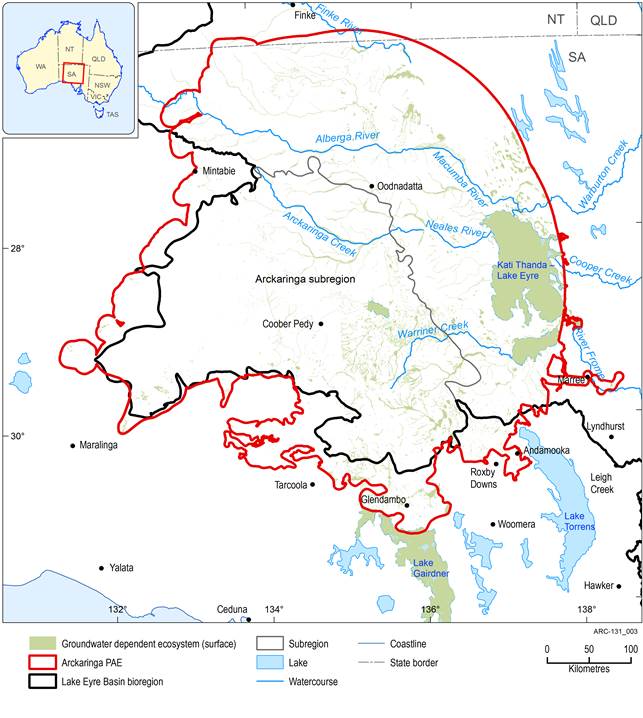

Figure 6 Groundwater-dependent ecosystems reliant on surface expression of groundwater in the Arckaringa preliminary assessment extent (PAE)

Data: Bureau of Meteorology (Dataset 7)

Figure 7

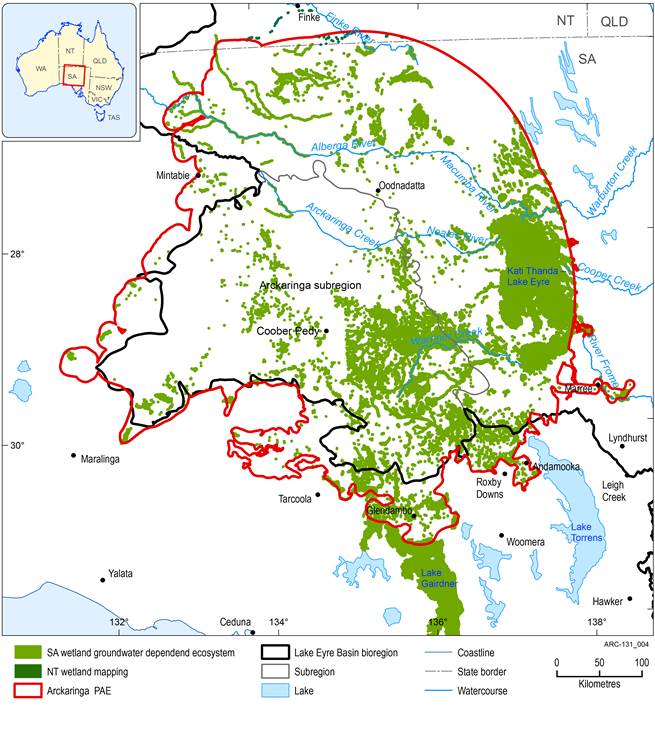

Figure 7 Distribution of wetland ecosystems types in the Arckaringa preliminary assessment extent (PAE), according to the South Australia wetland groundwater-dependent ecosystem mapping and Northern Territory wetland mapping

Data: South Australian Department of Environment, Water and Natural Resources (Dataset 13) and Northern Territory Department of Natural Resources, Environment, the Arts and Sport (Dataset 12)

Figure 8

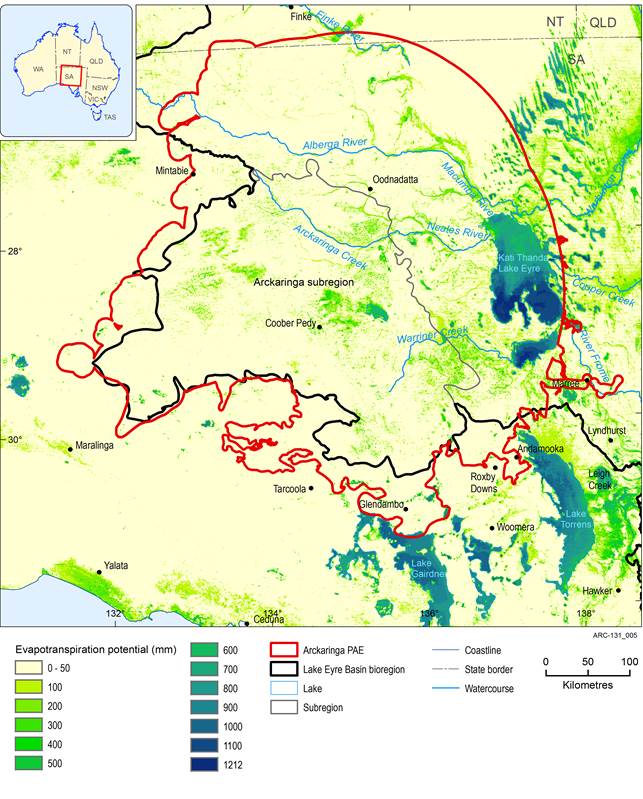

Figure 8 Mean annual evapotranspiration in excess of incident rainfall across the Arckaringa preliminary assessment extent (PAE)

Data: Bioregional Assessment Programme (Dataset 22)

Figure 9

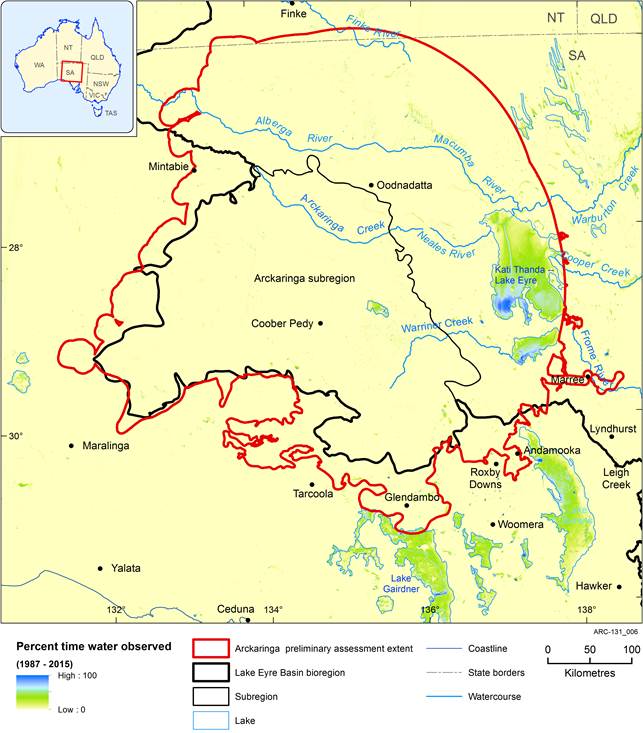

Figure 9 Percentage duration of flood inundation during 1987 to 2015 across the Arckaringa preliminary assessment extent (PAE)

Data: Bioregional Assessment Programme (Dataset 23)

Figure 10

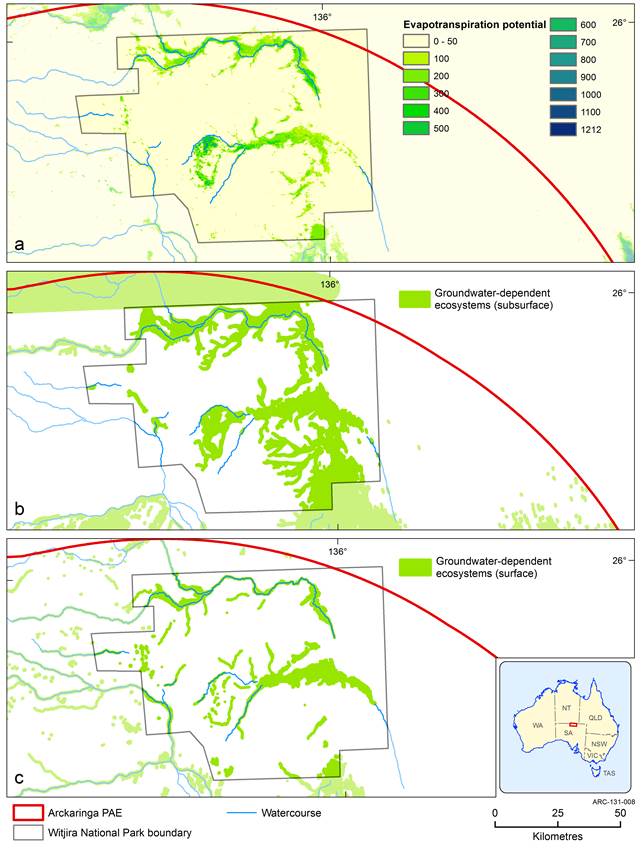

Figure 10 Spatial intersection of a specific asset, Witjira National Park, with layers of (a) mean annual evapotranspiration in excess of incident rainfall, (b) groundwater-dependent ecosystems reliant on subsurface presence of the water and (c) groundwater-dependent ecosystems reliant on surface expression of the water

Data: Bioregional Assessment Programme (Dataset 22), Bureau of Meteorology (Dataset 7)

Figure 11

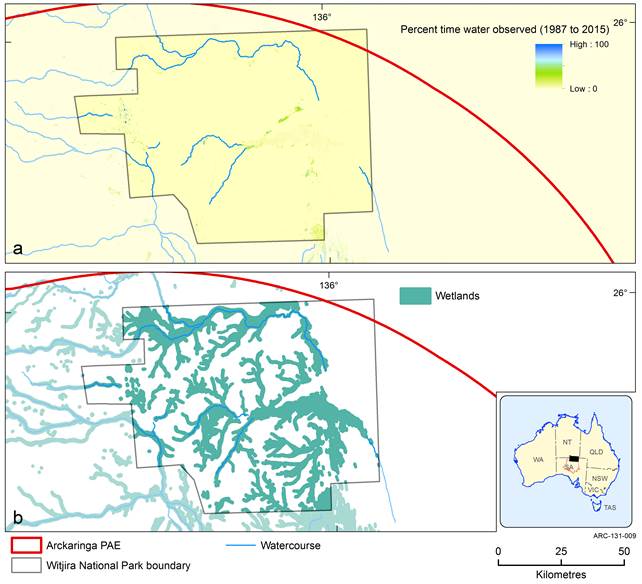

Figure 11 Spatial intersection of a specific asset, Witjira National Park, with layers of (a) percent duration of flood inundation and (b) wetland ecosystems types according to the South Australia wetland groundwater-dependent ecosystem mapping and Northern Territory wetland mapping

Data: Bioregional Assessment Programme (Dataset 23), South Australian Department of Environment, Water and Natural Resources (Dataset 13) and Northern Territory Department of Natural Resources, Environment, the Arts and Sport (Dataset 12)
