2.7.6.2 Qualitative mathematical model


A signed digraph model was developed for the vegetative community associated with the ‘Non-floodplain, terrestrial GDE’ landscape group. The model focused on recruitment dynamics associated with groundwater-dependent native tree species (referred to as full canopy (FC) in the models), with the primary production associated with tree canopies providing a range of (as yet unspecified) ecosystem roles. There was uncertainty in the extent to which native trees benefited native non-groundwater-dependent vegetation (i.e. canopy microclimate) or suppressed invasive non-groundwater-dependent vegetation, which led to the development of two alternative signed digraph models (Figure 35 and Figure 36).

Figure 35

Figure 35 Signed digraph model (Model 1) of the vegetative community associated with the 'Non-floodplain, terrestrial GDE' landscape group in the Galilee subregion zone of potential hydrological change

Model variables are: ecosystem roles (ES), full canopy (FC), fecundity (Fec), groundwater depletion (GWD), invasive non-groundwater vegetation (INGWV), native non-groundwater vegetation (NNGWV), primary production (PP) and recruitment (Rec). GDE = groundwater-dependent ecosystem

Data: Bioregional Assessment Programme (Dataset 4)

Figure 36

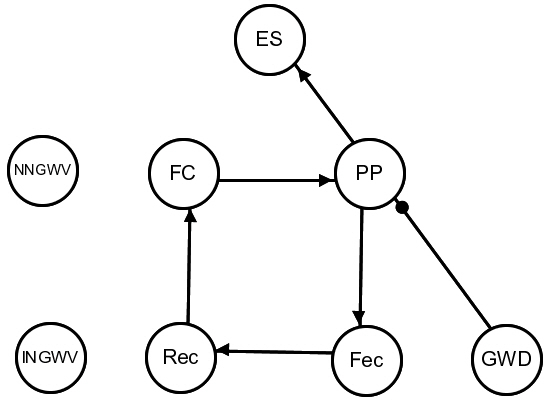

Figure 36 Signed digraph model (Model 2) of the vegetative community associated with the 'Non-floodplain, terrestrial GDE' landscape group in the Galilee subregion zone of potential hydrological change

Model variables are: ecosystem roles (ES), full canopy (FC), fecundity (Fec), groundwater depletion (GWD), invasive non-groundwater vegetation (INGWV), native non-groundwater vegetation (NNGWV), primary production (PP) and recruitment (Rec). GDE = groundwater-dependent ecosystem

Data: Bioregional Assessment Programme (Dataset 4)

Conceptual modelling, coupled with surface water and groundwater numerical modelling for the Galilee subregion indicated the potential impact of coal mining to groundwater depletion, which was included as a cumulative impact scenario in Table 28.

Table 28 Summary of the (cumulative) impact scenario (CIS) for the 'Non-floodplain, terrestrial GDE' landscape group in the Galilee subregion zone of potential hydrological change


CIS

GWD

C1

+

Pressure scenarios are determined by combinations of no-change (0), increase (+) or a decrease (–) in the signed digraph variable: groundwater depletion (GWD). Scenario C1 shows the expected impacts under the coal resource development pathway (CRDP). GDE = groundwater-dependent ecosystem

Data: Bioregional Assessment Programme (Dataset 4)

Qualitative analysis of the signed digraph models (Figure 35 and Figure 36) indicates a negative response prediction for all biological variables (Table 29 and Table 30, respectively), except for invasive non-groundwater vegetation, which is predicted to increase in Model 1. In Model 2 (Table 30), native non-groundwater vegetation and invasive non-groundwater vegetation both have predictions of zero change, which is a consequence of not being connected to the rest of the system.

Table 29 Predicted response of the signed digraph variables (Model 1) of ‘Non-floodplain, terrestrial GDE’ landscape group to (cumulative) changes in the hydrological response variable


Signed digraph variable

Signed digraph variable (short form)

C1

Full canopy

FC

Primary production

PP

Fecundity

Fec

Recruitment

Rec

Ecosystem roles

ES

Native non-groundwater vegetation

NNGWV

Invasive non-groundwater vegetation

INGWV

+

Groundwater depletion

GWD

+

Qualitative mathematical model predictions that are completely determined are shown without parentheses. GDE = groundwater-dependent ecosystem

Data: Bioregional Assessment Programme (Dataset 4)

Table 30 Predicted response of the signed digraph variables (Model 2) of ‘Non-floodplain, terrestrial GDE’ landscape group to (cumulative) changes in hydrological response variables


Signed digraph variable

Signed digraph variable (short form)

C1

Full canopy

FC

Primary production

PP

Fecundity

Fec

Recruitment

Rec

Ecosystem roles

ES

Native non-groundwater vegetation

NNGWV

0

Invasive non-groundwater vegetation

INGWV

0

Groundwater depletion

GWD

+

Qualitative mathematical model predictions that are completely determined are shown without parentheses. Zero denotes completely determined predictions of no change. GDE = groundwater-dependent ecosystem

Data: Bioregional Assessment Programme (Dataset 4)
